Here we go!

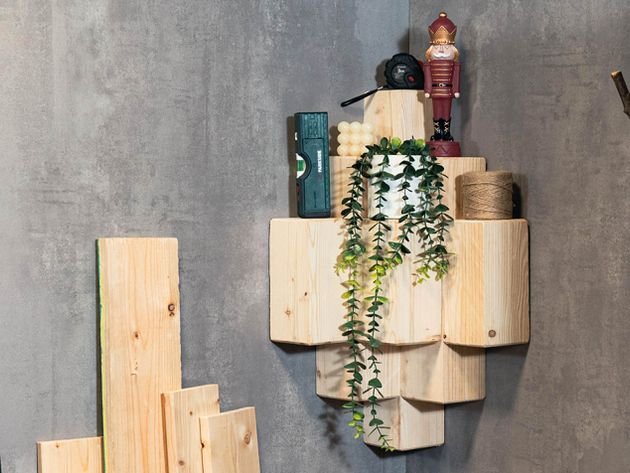

More great woodworking from PARKSIDE Workshop: Today we’re building a corner shelf.
Tools
PARKSIDE Miter and Pull Saw
PARKSIDE Cordless Drill/Driver
PARKSIDE Router
PARKSIDE Cross-Line Laser
PARKSIDE Clamp
PARKSIDE Hacksaw
PARKSIDE Folding Ruler
PARKSIDE Pencil
Shopping list
1 x spruce beam 3000 mm x 100 mm x 100 mm
Suspension rail 2000 mm x 29 mm x 6.5 mm
Panhead screws:
4 x 4 mm x 40 mm
4 x 4.5 mm x 45 mm (depending on the wall)
Countersunk screws: 12 x 6 mm x 120 mm
Dimensions
Quantity | Material | Component | Dimension in mm
1x | Beam | For vertical back panel (A) | 100 mm x 100 mm x 600 mm
2x | Beams | Central (B) | 100 mm x 100 mm x 400 mm
3x | Beams | Front (C) | 100 mm x 100 mm x 200 mm
2x | Suspension wing | (D) | 140 mm

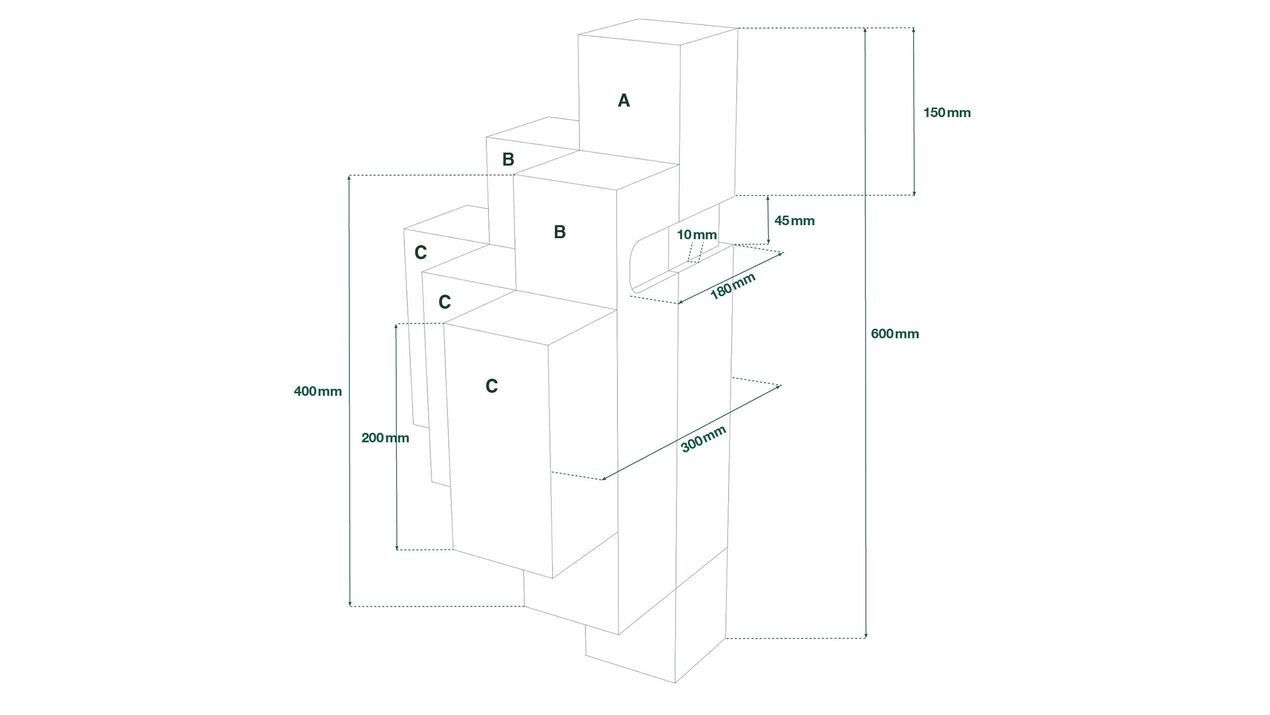

Plan
With this overview, you always have the right component at hand.
Safety Note: This project requires a large amount of equipment. This is a commitment. Always ensure your safety and use the necessary protective equipment.
